Grouping Operations

​

What is a Root Span?

A root span is the top-level span in a trace that encompasses all related operations. It provides a hierarchical structure to your traces, making it easier to understand the relationship between different operations in your application.

​

Benefits of Grouping Traces

• Improved Visibility: See the entire flow of operations in a single trace.
• Performance Analysis: Easily identify bottlenecks within a group of related operations.
• Debugging: Quickly pinpoint issues within a specific workflow.
• Context Preservation: Maintain context across multiple operations, making it easier to understand the full picture of your application’s behavior.

​

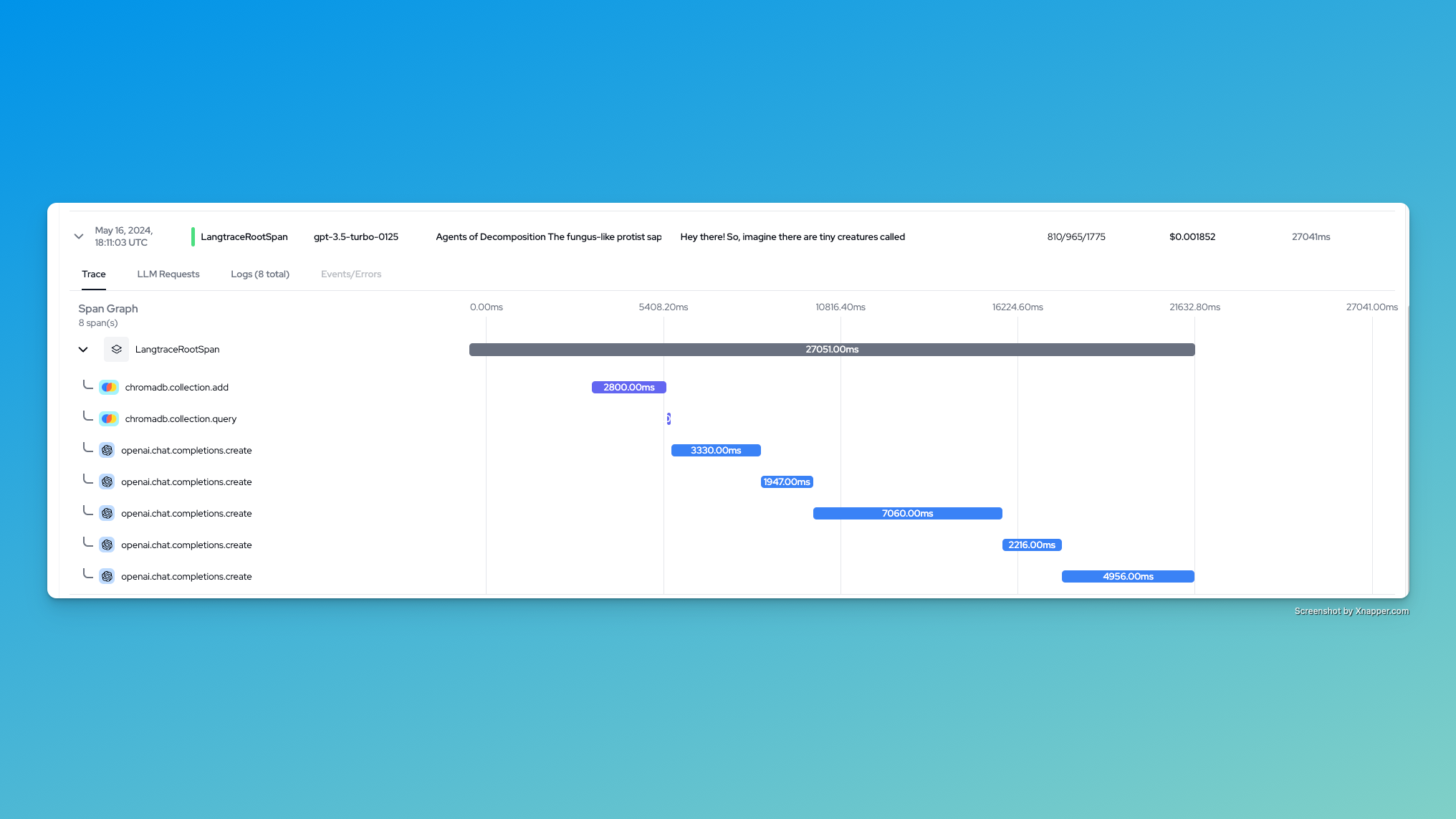

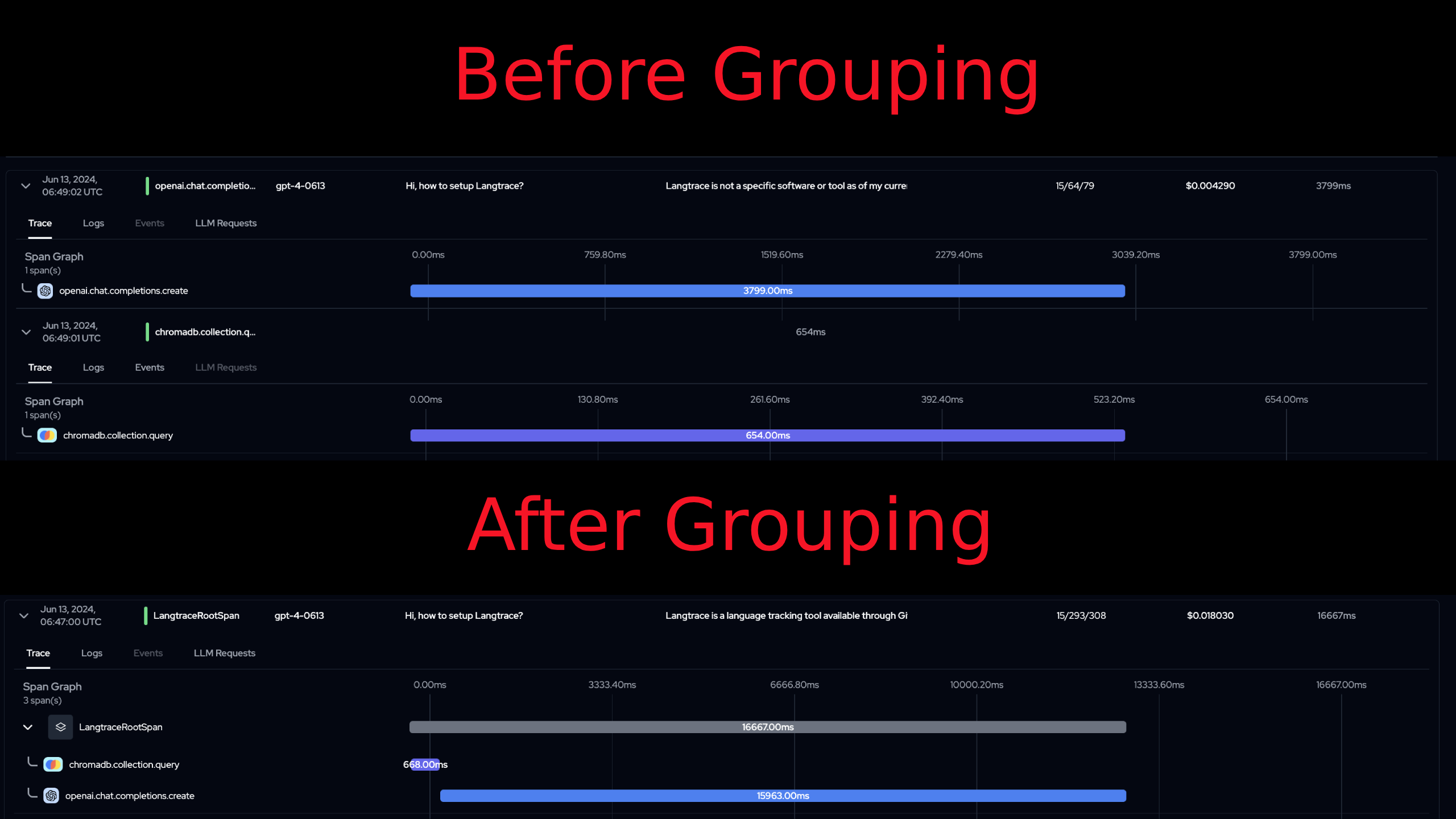

How to Group Traces

A typical application may have multiple operations that are related to each other. For example, in a RAG workflow, the user’s input is embedded using a model, a semantic search is done on a VectorDB, and the results are again given back to the model to get a natural language response. In such cases, it is useful to group these operations together under a single root span. This allows you to see the entire flow of operations in a single trace.

​

Installation

Step 1: Install and initialize Langtrace SDK. Refer to the installation guide for more information.

​

Usage

Step 2: Use the with_langtrace_root_span decorator (Python) or WithLangTraceRootSpan (Typescript) function. Example below:

​

Usage Examples

The following examples demonstrate how to group traces in a typical RAG (Retrieval-Augmented Generation) workflow:

1. Embed user input
2. Perform semantic search on a vector database
3. Generate a response using an LLM

​

Examples

​

Best Practices for Grouping Traces

1. Group Logically: Create root spans around logical units of work or user-facing operations.
2. Keep it Simple: Avoid creating overly complex hierarchies of spans.
3. Use Consistent Naming: Adopt a consistent naming convention for your root spans to make analysis easier.
4. Add Context: Use attributes to add relevant context to your root spans.
5. Balance Detail and Overview: Strive for a balance between providing detailed traces and maintaining a clear high-level view of your application’s behavior.

​

Troubleshooting

If you’re not seeing grouped traces as expected:

1. Verify that Langtrace is properly initialized before any LLM module imports.
2. Ensure that all relevant operations are within the scope of the withLangTraceRootSpan function or @with_langtrace_root_span decorator.
3. Check that your API key is correct and that you have the necessary permissions.
4. If using asynchronous operations, make sure they’re properly awaited within the root span scope.
